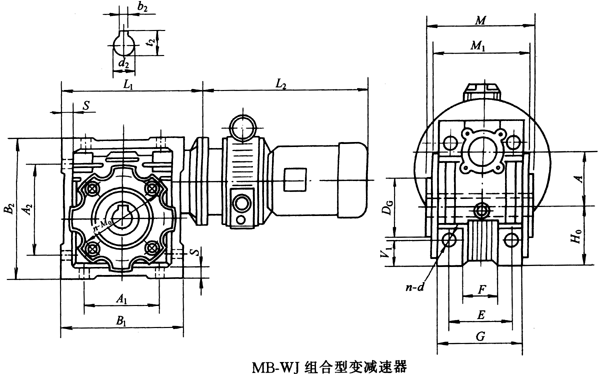

MB-WJ型變減速器主要尺寸
www.shenxingbang.cn 格魯夫機(jī)械 2015-05-13 15:46:46
點(diǎn)擊：
|
|
中心高
H0
|
A
|
|
|
|
|
V1
|
E
|
A1
|
A2
|
DG
(H7)
|
n-d
|
n-M0
|
d2
(H7)
|
b2
|
t2
|
S
|
B1
|
B2
|
G
|
F
|
M
|
M1
|
Lmax
|
L2
|
|
WJ50
|
60
|
50
|
20
|
70
|
80
|
104
|
70
|
14-φ9
|
4-M8
|
25
|
8
|
28.3
|
7.5
|
120
|
145
|
85
|
50
|
94
|
88
|
150
|
按所
|
|
WJ63
|
72
|
63
|
22
|
85
|
100
|
130
|
80
|
14-φ9
|
4-M8
|
25
|
8
|
28.3
|
8
|
145
|
175
|
102
|
66
|
112
|
106
|
180
|
|
WJ75
|
86
|
75
|
26
|
90
|
120
|
154
|
95
|
14-φ11
|
4-M8
|
28
|
8
|
31.3
|
10
|
175
|
206
|
112
|
72
|
120
|
114
|
215
|
|
WJ90
|
104
|
90
|
33
|
100
|
140
|
172
|
110
|
14-φ11
|
4-M10
|
35
|
10
|
38.3
|
11
|
210
|
240
|
130
|
80
|
140
|
134
|
250
|
|
